What’s in a Brick?

There are many beautiful bricks around Cranbrook’s campus. From the Roman brick details at Cranbrook School, the buckskin “Cranbrook brick” at the Academy and Institute of Science, or the beautiful green and gold bricks of Kingswood, Eliel Saarinen was a master of the ancient building material.

The richness of this legacy made architects Tod Williams and Billie Tsien extremely diligent in specifying materials for their own addition to campus, the Williams Natatorium. Completed in 1999 and sited within the heavily wooded area adjacent to the Saarinen-designed Keppel Gymnasium, the 26,000-square-foot swimming facility features very few details that are not custom made. This includes the bricks.

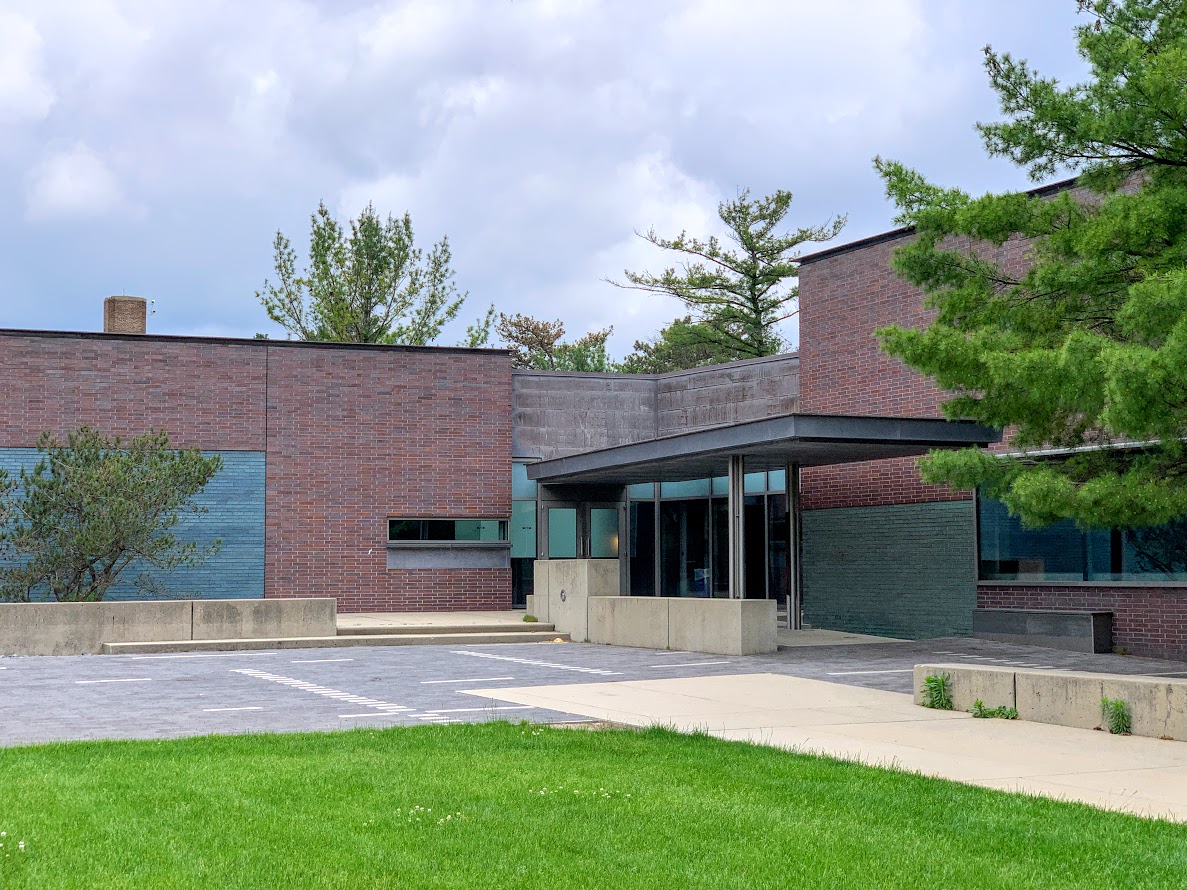

The entrance to the Cranbrook Natatorium, showcasing purple Norman brick, glazed blue and green brick, concrete, and lead-coated copper. Courtesy Cranbrook Center for Collections and Research.

The architects wanted glazed bricks (a material famously used by Eero Saarinen at the General Motors Technical Center), but they couldn’t find any product available on the market that meet their needs. Project architect Martin Finio told Construction Association of Michigan Magazine (Fall 2000) that:

Typical glazing tends to resemble a painted surface. The glaze becomes the object of interest. The brick behind it could be anything. What we were interested in was trying to find a way of glazing brick in such a way that you can feel the body of the brick through it.

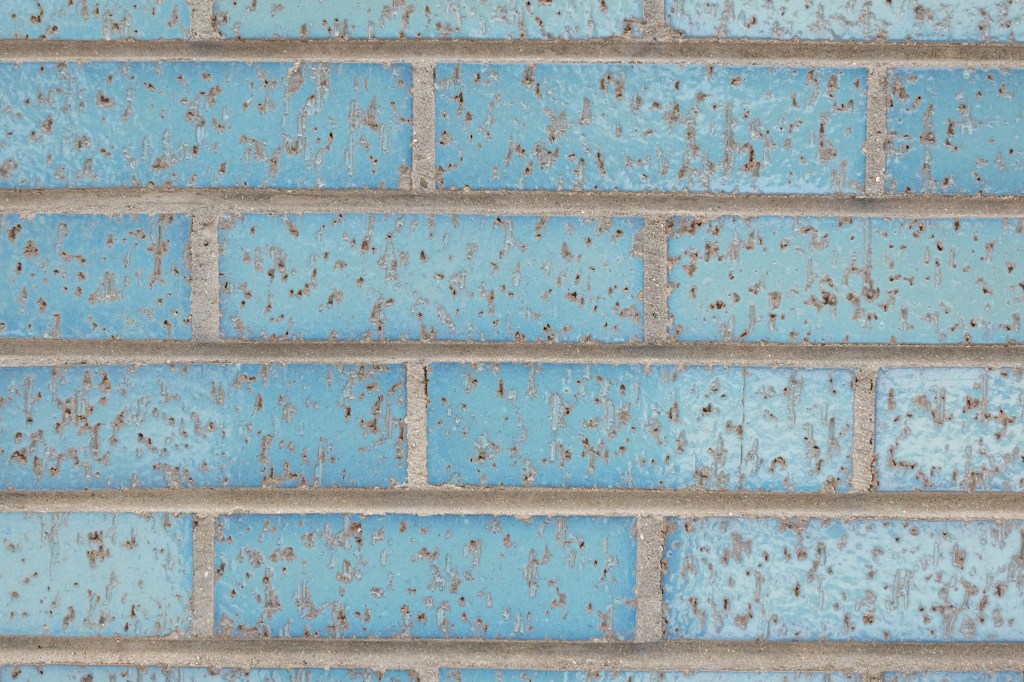

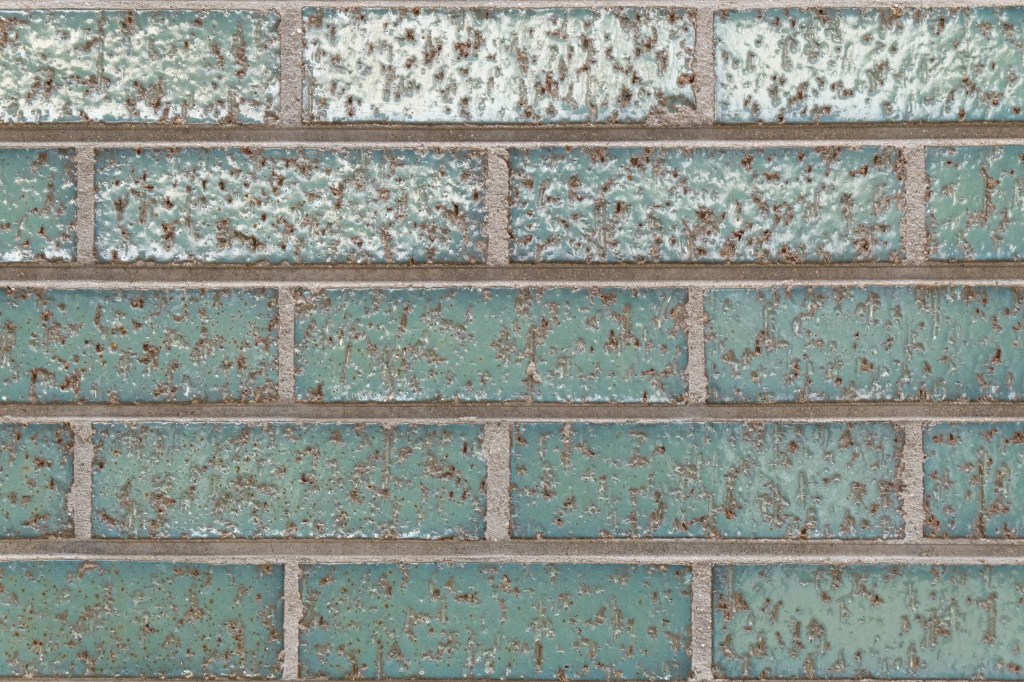

The architects turned to Endicott Clay of Fairbury, Nebraska to help craft custom glazed brick, with a base of ironspot brick the company already produced. In ironspot bricks, manganese in the clay creates dark spots when fired. The goal for Cranbrook was to have these spots remain visible behind the glaze.

After receiving dozens of sample test glazed bricks that weren’t what the architects wanted, Martin Finio, Billie Tsien, and project manager Gary Scheuren traveled to Nebraska to learn more about the process and to work on getting the Natatorium bricks just right. When they arrived, Tsien saw a stack of samples Endicott Clay had deemed failures, rejected, and never sent to the architects in New York. Within the trash pile was the exact finish the architects wanted. Endicott Clay simply reverse engineered the once-rejected bricks and made enough mottled blue and green glazed bricks for the building.

Beyond the colors’ ties to water and earth (appropriate for a pool in the woods), the specific shade of blue and green have special Cranbrook associations. The blue is the famed “Grotell blue” of Cranbrook’s longtime Head of Ceramics, Maija Grotell, while the green relates to the lovely shades of aqua used by Pipsan Saarinen Swanson inside Kingswood and that building’s great patinated copper roof.

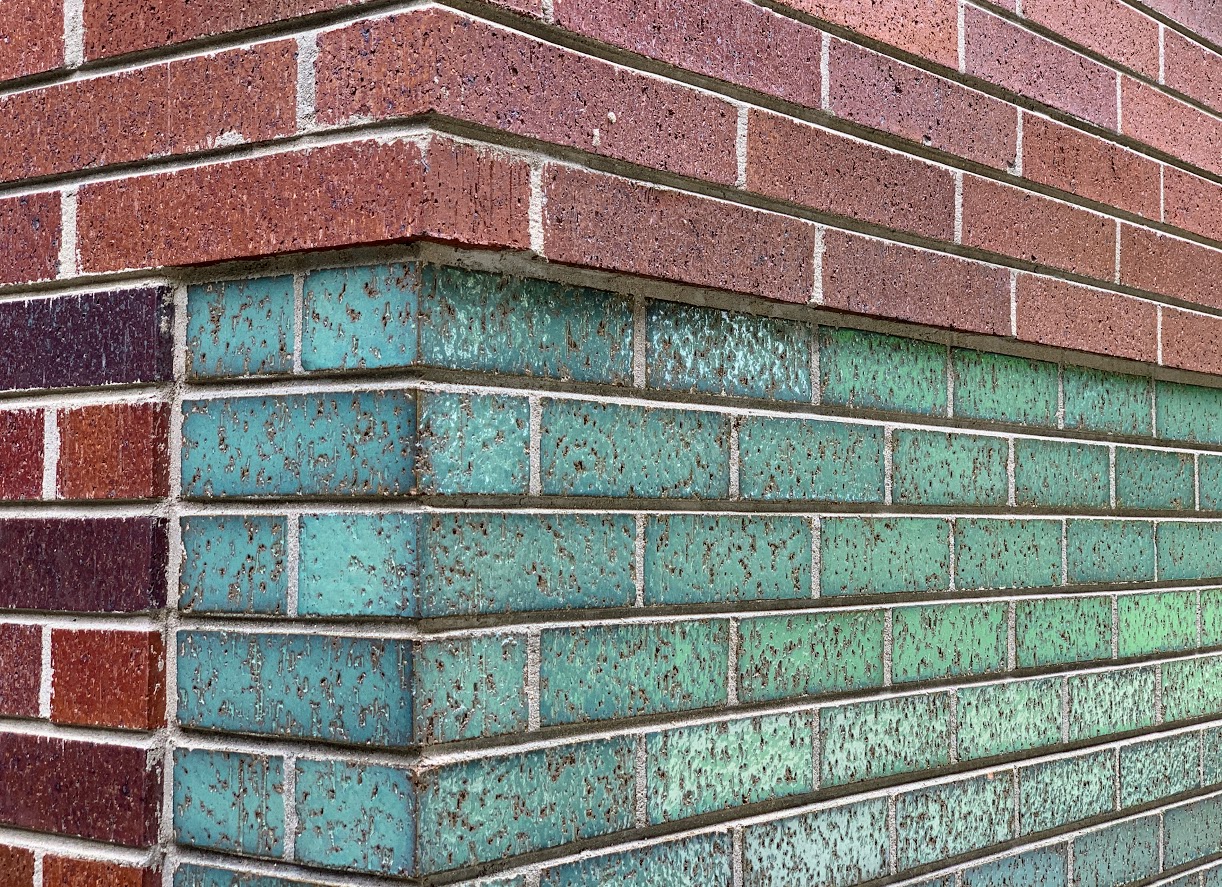

The Norman bricks above the green glazed bricks. Notice the raked horizontal mortar lines. Cranbrook Center for Collections and Research.

Alongside the glazed bricks, the architects specified manganese ironspot Norman bricks in deep purple. Norman bricks are longer than standard bricks and enhance the horizontality of the building. Using a tradition made famous by Frank Lloyd Wright and also used by Eliel Saarinen at Cranbrook, the horizontal mortar is raked and the vertical mortar is flush, casting the horizontal joints in shadow and increasing the sense of compression across the façade.

This hinge joint of blue glazed and purple Norman bricks terminates the east-west axis running from George Booth’s office in Cranbrook House, past the Art Museum and Orpheus fountain, and to the Natatorium. Daniel Smith, photographer. Cranbrook Center for Collections and Research.

Other materials used on the exterior of the Natatorium include cast in place concrete (sandblasted to give it a warmer feel and richer texture), warm toned ground-faced concrete block (custom made in Grand Blanc), Honduran mahogany, Mexican river rock, and Pietra Cardosa Italian slate.

—Kevin Adkisson, Curatorial Associate, Cranbrook Center for Collections and Research

3 years ago Short URL 2 Comments

Architecture/Cranbrook Educational Community/Cranbrook School/Schools

Author: Kevin Adkisson/Billie Tsien/Bricks/Endicott Clay/General Motors Tech Center/natatorium/Tod Williams/Williams Natatorium

May

Cranbrook, Way Back

When we consider historical records, even digital ones, our thoughts do not usually extend to websites. Yet, just like student newsletters or exhibition catalogs, Cranbrook’s website is a compendium of institutional information regarding the people, places, and things that make it unique. As we ourselves shift evermore towards online existences, one focus of the Archives has been on how to ensure Cranbrook’s virtual legacy.

I’m sure everyone is familiar with the expression, “What goes on the internet, stays on the internet,” or some variation thereof. Cranbrook is no exception. Fortunately, there is the Internet Archive. A non-profit American digital library, it has been saving public websites since 1996. And, courtesy of its web archives, the Wayback Machine, Cranbrook’s evolving web presence has been captured over time from its beginnings in the mid to late 1990s to today. [Interesting aside: through the Internet Archives backup protocol, Cranbrook is a part of the Bibliotheca Alexandrina, the current incarnation of the famed ancient Library of Alexandria!]

One of the quickest ways to get a snapshot of what was going on at Cranbrook in the last twenty-three years is through its website. Get lost in Cranbrook 1997 by clicking on the above homepage image and navigating through the still active links.

How about exploring Cranbrook 2007?

There are only 1,450 more site captures to delve into, if you’ve got the time! While the interactive websites of Cranbrook’s past can be accessed in this way, it is important to note that the information and files used in their creation form part of the over two million items at the Archives. For example, the main homepage image from the 1997 website, the Woodward Entrance Feature, can be found in the Archives’ Architecture Slide Collection.

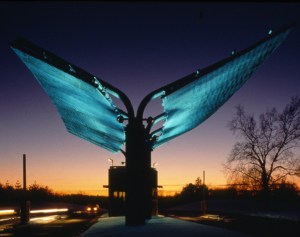

View of the entrance feature from Woodward Avenue at sunset, 1996. Dan Hoffman, designer. Balthazar Korab, photographer. Copyright Balthazar Korab/Cranbrook Archives.

As increasingly digital files become the only documentation of Cranbrook activities or events, its websites are more integral to understanding the context of these records. The Archives continues to expand its digital capabilities to keep pace. In the near future, we hope to provide our own copies of Cranbrook’s various websites (with keyword search capability), side by side with the digital records from which they were created.

–Deborah Rice, Head Archivist, Cranbrook Archives Cranbrook Center for Collections and Research

3 years ago Short URL 2 Comments

Archives/Cranbrook Academy of Art/Cranbrook Art Museum/Cranbrook Educational Community/Cranbrook House and Gardens/Cranbrook Institute of Science/Schools

Author: Deborah Rice/Balthazar Korab/Dan Hoffman/digital records/internet/Internet Archive/Wayback Machine/websites

May

Getting a Green Roof

In the Architectural Forum of January 1932, an advertisement announced that 160,000 pounds of 16-ounce Anaconda Copper had been used for the newly opened Kingswood School Cranbrook. There are copper gutters, cornices, louvers, moldings, and chimney covers, but most impressive is the 90,000 square foot batten seam copper roof.

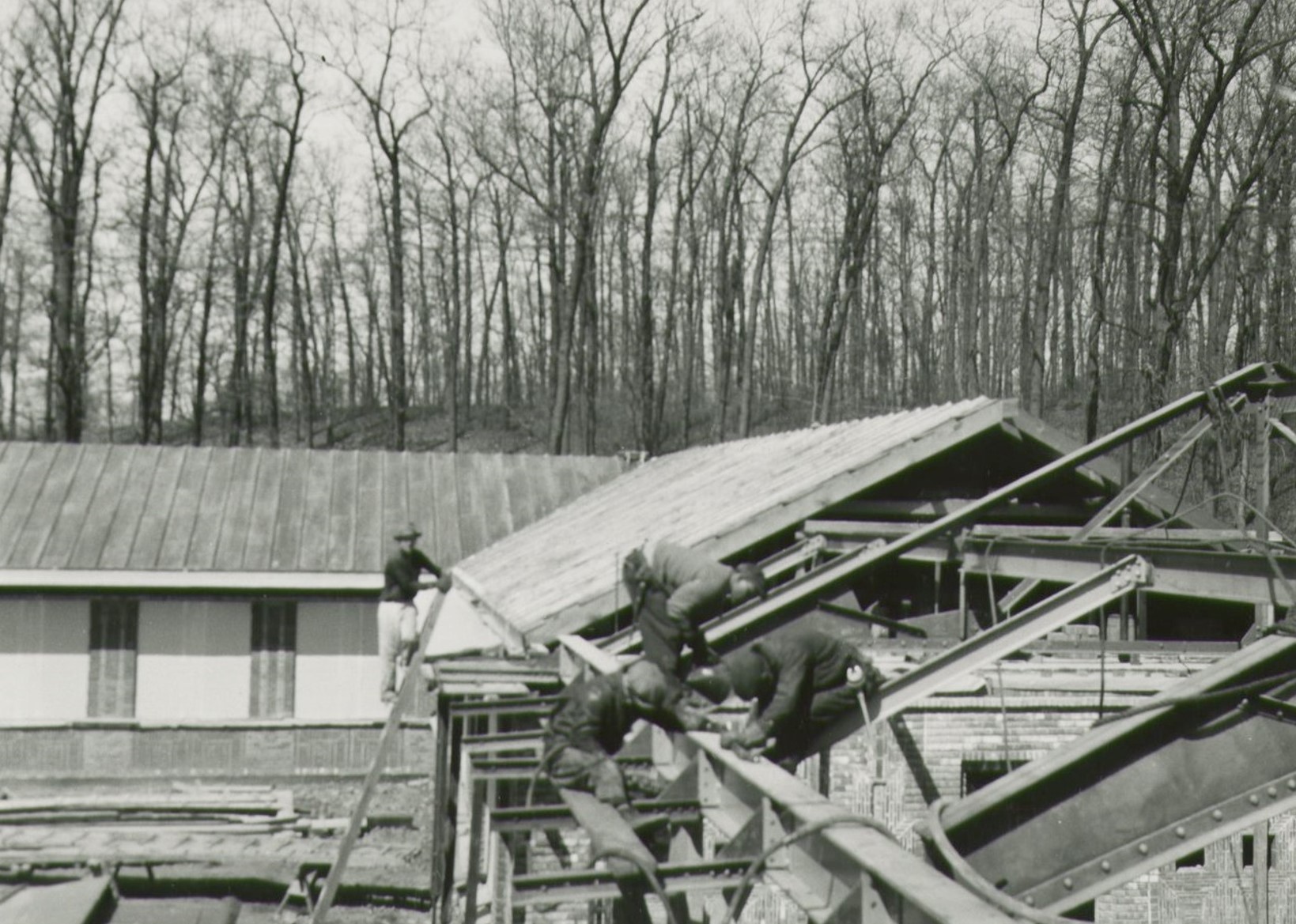

Kingswood Roof Construction Copyright Cranbrook Archives
